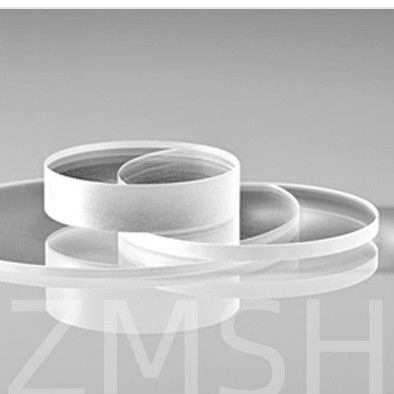

AR Coated Sapphire Optical Window Customizable Diemensions for Imaging Applications

AR Coated Sapphire Optical Window Customizable Diemensions for Imaging Applications

Introduction of Sapphire Window:

     A sapphire optical window refers to a sapphire window product designed for optical applications such as imaging, detection, and scanning. Because sapphire has broad-spectrum transmission capability — from ultraviolet (UV) to near-infrared (NIR) — sapphire optical windows can reduce the number of glass elements required in optical instruments and significantly lower overall system weight, making them widely used in aerospace and aviation applications. However, the intrinsic transmittance of sapphire is typically around 82–85%. To enhance transmission in specific wavelength ranges or block certain spectral bands, sapphire optical windows are often given special coating treatments, such as anti-reflective (AR) or anti-fog (AF) coatings, depending on the intended optical performance requirements.

Optical Advantages of AR Coating Sapphire Optical Window:

Improved Transmittance: Raises total transmittance from ~85% (uncoated) to >98%.

Reduced Reflection: Minimizes reflection losses and optical ghosting.

Enhanced System Efficiency: Better signal throughput for imaging and detection systems.

Custom Spectral Optimization: AR coatings can be tailored for UV, visible, or IR bands depending on the application.

Specification of ZMSH Sapphire Optical Window:

ZMSH Related Product for your reference:

Dia60*5mm Sapphire Optical Windows Round For Vacuum Equipment Smartphone

These Sapphire Windows are the perfect solution for demanding applications where extreme surface hardness, high thermal conductivity, and resistance to common chemical acids and alkalis are required.

ZMSH Sapphire Windows are made from single-crystal sapphire, which is the second hardest crystal after diamond. This structural strength allows us to manufacture thinner windows with improved transmittance, making them ideal for use in laser systems and other applications that require high performance.

ZMSH is committed to quality, reliability, and exceptional customer service that you can trust. At Analytical Components, we take pride in our commitment to excellence and our dedication to providing you with the highest quality Sapphire Windows on the market

Advantages and Applications of Sapphire Optical Windows:

    As an excellent wave-transmitting (filter) material, sapphire exhibits high transmittance across the ultraviolet (UV), visible, and infrared (IR) spectral regions. (A wave-transmitting material refers to one that allows electromagnetic waves to pass through with minimal alteration of their properties and energy.)Sapphire possesses a range of outstanding physical and chemical properties, including high strength, exceptional hardness, high-temperature resistance, wear and corrosion resistance, excellent optical transparency, and superior electrical insulation. Because of these advantages, sapphire crystals are widely used in aerospace instruments as infrared and ultraviolet windows, high-temperature furnace observation ports, solar cell protection covers, watch crystals, infrared military systems, as well as in scientific research, civil and industrial applications, and as optical windows for high-power lasers.

Q&A:

Q: What is an AR Coated Sapphire window?

A: An AR Coated Sapphire Window (Anti-Reflective Coated Sapphire Window) is a high-performance optical component made from single-crystal sapphire (Al₂O₃) that has been coated with an anti-reflective (AR) layer to improve light transmission and reduce surface reflection. An AR-coated sapphire window offers the strength, heat resistance, and broad spectral transmission of sapphire, combined with the enhanced optical performance of anti-reflective coatings, making it ideal for demanding optical, laser, aerospace, and scientific applications.

Q:What are Sapphire Windows Used For?

A: These items can be used both in manufacturing applications and commercial products. This polished sapphire material can be used anywhere from cell phone screens, cameras, microscopes, and eyeglass lenses to military-grade equipment like break-resistant windshields, diving equipment, and submarine viewports. With such a wide versatility, many consumer products are seeing improvements from regular glass to sapphire windows, where in previous decades the cost of creating this material was too great to make available at prices that would allow the public to benefit from the material. As costs lower, however, this glass is becoming more widely available and replacing many glass-like components on the market today.
