Sapphire Wafer 6inch C Axis to M Axis 350um Thickness DSP

Sapphire Wafer 6inch C Axis to M Axis 350um Thickness DSP

Ονομασία μάρκας: ZMSH
Αριθμός μοντέλου: 6 ιντσών
MOQ: 10 κομμάτια
Πληροφορίες συσκευασίας: Πακέτο κενού
Όροι πληρωμής: T/t
Πληροφορίες λεπτομέρειας
Τόπος καταγωγής:
ΚΙΝΑ
Πιστοποίηση:
RoHS
Διάμετρος:
6 ιντσών
Πάχος:
350±15um
Τραχύτητα:
Ra ≤ 0,2 nm
Στημόνι:
≤ 15UM
TTV:
≤ 10um
Σχήμα:
Στρογγυλό, επίπεδη, εγκοπή
Ξύστε/σκάψτε.:
20/10
πολωνικά:
dsp ή SSP
Επισημαίνω:

6inch sapphire wafer DSP

,

C axis to M axis sapphire substrate

,

350um thickness sapphire wafer

Περιγραφή προϊόντων

Sapphire Wafer 6inch C Axis to M Axis 350um Thickness DSP







Production Description:

Sapphire wafers are single‑crystal substrates grown from high‑purity aluminum oxide (Al₂O₃) via processes such as the Kyropoulos (KY) and Heat Exchanger Method (HEM). Their molecular structure consists of three oxygen atoms and two aluminum atoms covalently bonded in a hexagonal lattice. This structure endows sapphire wafers with a range of superior properties, making them a key material across multiple high‑precision and cutting‑edge fields.





Product Parameters:

Diameter: 6inch or 150±0.1mm
Thickness: 350±15um; 500 ± 15 um; 1000±15um
Roughness: Ra ≤ 0.2 nm
Warp: ≤ 15um
TTV: ≤ 10um
Polish: DSP (Double Side Polished); SSP(Single Side Polished)
Shape: Round, Flat, Notch
Wafer Orientation: C Axis to M Axis
Edge Form: 45°, C shape
Material: Sapphire
Remarks:

All specifications above can be customized upon your request.

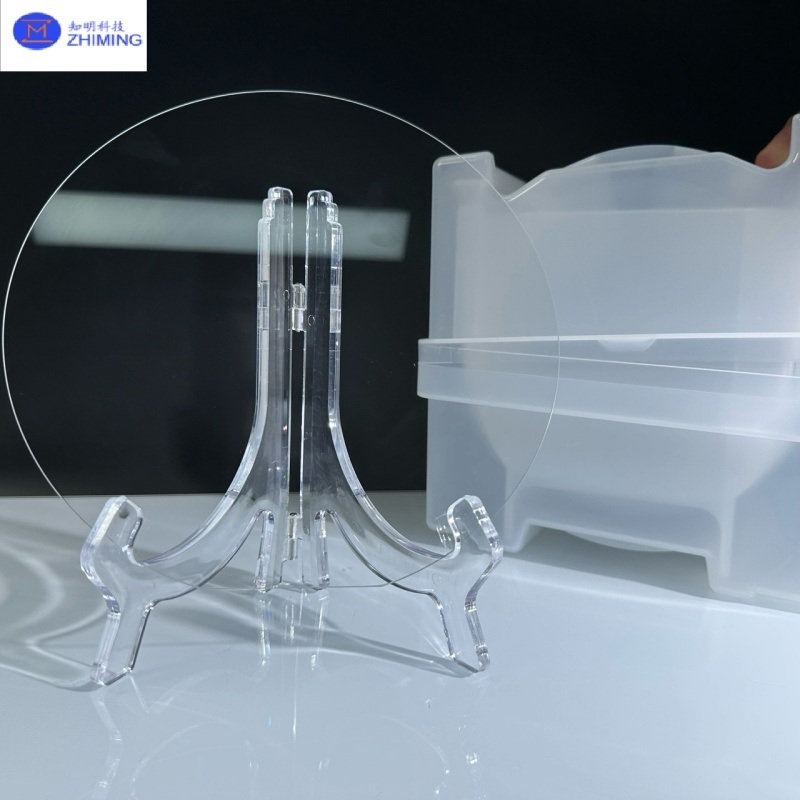

Product Pictures:

Sapphire Wafer 6inch C Axis to M Axis 350um Thickness DSP 0





Product Highlights:



* Sapphire wafers are with common crystallographic orientations include C‑plane (0001), A‑plane (11‑20), and R‑plane (1‑102); the choice of orientation tailors optical, mechanical, and epitaxial behavior for specific devices.



* Typical optical transmission spans the near‑UV to mid‑infrared (approximately 0.19–5.5 μm), with high transparency in the 0.3–5 μm range, supporting applications in optics and optoelectronics.



* Mechanical and thermal properties of sapphire wafers include a Mohs hardness of 9, high strength and wear resistance, and a melting point ~2050°C, enabling performance under extreme environments.



* Chemical stability of sapphire wafers is excellent—resistant to most acids and alkalis—with notable attack only by HF, phosphoric acid, and molten KOH at elevated temperatures.



* Representative applications of sapphire wafers: LED substrates (GaN on sapphire), infrared and laser windows, optical components, and wear‑resistant covers in consumer electronics.





Related Product Recommendation:



2inch Spphire Wafer  C Axis DSP:

Sapphire Wafer 6inch C Axis to M Axis 350um Thickness DSP 1



Q&A:



Q: What is a sapphire wafer?



A: A sapphire wafer is a circular thin slice made of sapphire material, which is widely used in the manufacturing of semiconductors and optical devices.



Q: What size are sapphire wafers?



A: 2inch, 3inch, 4inch, 6inch, 8inch, 12inch.



Q: How to cut a sapphire wafer?



A: Cutting a sapphire wafer requires specialized methods due to its extreme hardness (9 on the Mohs scale, second only to diamond) and brittleness. The core approach relies on abrasive-based or laser-based techniques to achieve precise, low-damage cuts.
